Researchers at Northeastern University have developed a prototype firefighting robot that uses a cryogenic liquid nitrogen spray to extinguish wildfires. The system targets hazardous hotspots by rapidly cooling fuel and displacing oxygen, offering a residue-free alternative to traditional retardants to suppress small fires before they escalate.
The project began as a laboratory experiment in 2008. While testing shredded tire rubber as a potential alternative fuel, Yiannis Levendis, a professor of mechanical and industrial engineering at Northeastern University, observed that liquid nitrogen could snuff out flames almost immediately. This discovery shifted the focus toward a specialized robotic response for wildfire hotspots.
The Mechanics of Cryogenic Suppression
Unlike standard chemical retardants, the cryogenic approach relies on a physical reaction to stop combustion. When liquid nitrogen hits a fire, it undergoes a rapid phase change, evaporating and expanding into a gas. This process creates a dual-action effect: it removes the oxygen necessary for the fire to burn and simultaneously lowers the temperature of the fuel.
“Liquid nitrogen, when thrown on fire, quickly evaporates and expands into gas almost 1,000 percent,” Levendis said. “That suffocates the fire and creates a cooling effect on the fuel.”
Yiannis Levendis, professor of mechanical and industrial engineering at Northeastern University
Because the agent is nitrogen, it leaves no chemical residue. This lack of additives potentially reduces the environmental impact on nearby water bodies and soil, a significant advantage over traditional suppression chemicals.
All-Terrain Prototype and Field Testing

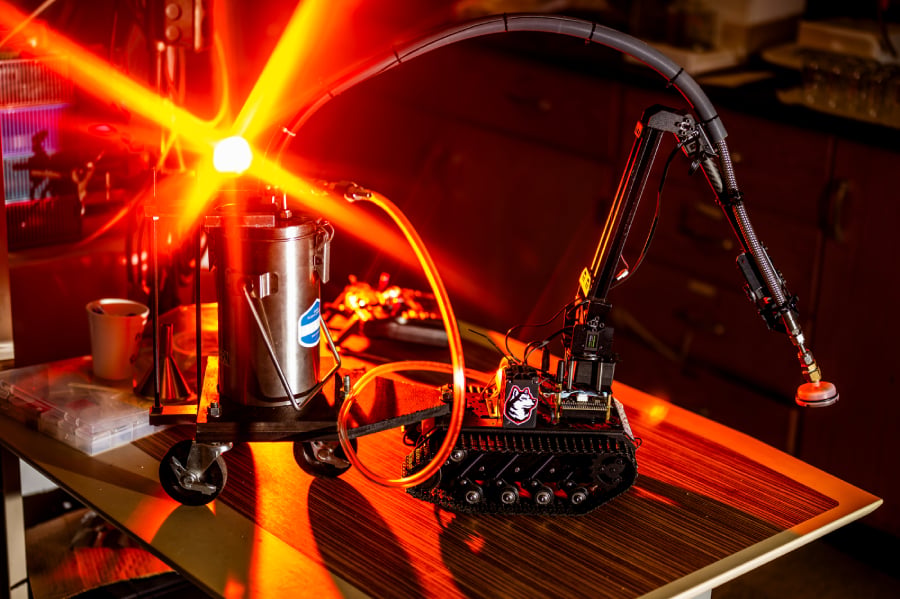

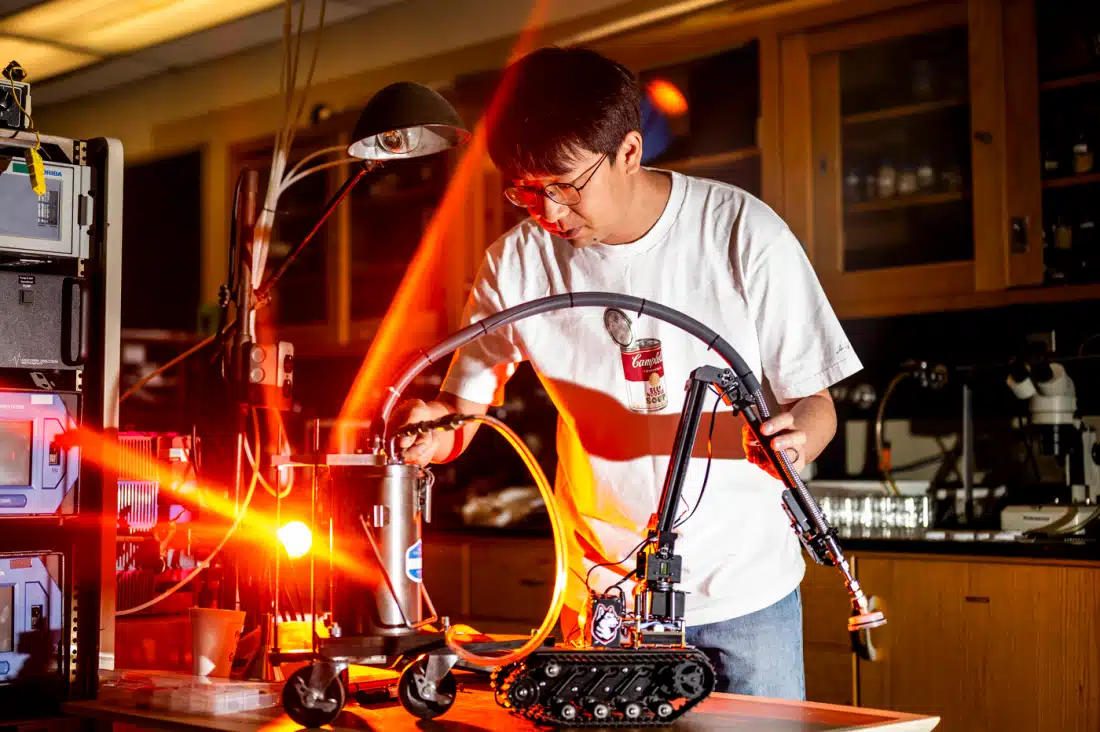

To deliver the nitrogen to dangerous areas, Levendis worked with students Aobo Liu and Hayden Hishmeh to build a compact, all-terrain robotic platform. Aobo Liu, who studies mechanical engineering, works on the robot in the Snell Engineering building. The prototype features caterpillar tracks for mobility, a liquid nitrogen tank, and a spray hose. The system is designed to be operated either remotely or potentially autonomously, allowing it to enter zones too risky for human crews.
The robot is currently being evaluated on controlled fires. Researchers are using forest fuels common to wildfire-prone regions in the western United States to simulate real-world conditions. This testing phase is supported by funding from the Gordon and Betty Moore Foundation, which helped the team develop the prototype and establish the necessary facilities.
Scaling from Robots to Firetrucks
While the current prototype is a small-scale vehicle, the goal is scalability. Levendis believes the cryogenic system can be integrated into larger firefighting machinery. He stated that he believes the technology can be converted to vehicles as large as firetrucks, adding that the team is “fairly close” to that transition.
The shift toward robotics in firefighting is also a matter of personnel safety. Tom Ryden, executive director of MassRobotics, noted that robots are ideal for high-risk environments because the only loss in a failure is the cost of the machine, not a human life.
“A perfect use for robots is to send them into dangerous spots,” Ryden said, according to Northeastern Global News. “Even if we lose a robot, it’s just the cost of the machine that’s lost, not a person.”
Tom Ryden, executive director of MassRobotics
Engineering Hurdles and Deployment Realities
Despite the successful prototype, the transition to active wildfire operations faces significant logistical barriers. The technology is still in the prototype stage, and the team must still solve problems regarding cryogenic storage, transportation logistics, and the amount of nitrogen required for sustained firefighting.
If these hurdles are cleared, the robot would likely serve as a complement to existing methods rather than a total replacement. By attacking small ignition points and hotspots quickly, the cryogenic robot could prevent a small fire from evolving into a major wildfire, potentially saving vast tracts of land and reducing the need for more invasive suppression tactics.
