The surge in generative AI has pushed semiconductor engineering into uncharted territory. While the world focuses on the capabilities of large language models, a quieter, more complex battle is being fought at the hardware level. The shift toward massive parallel processing has made AI accelerator testing a critical bottleneck, transforming how chips are validated from the initial wafer probe to the final deployment in data centers.
Unlike traditional central processing units (CPUs) that handle tasks sequentially, AI accelerators are composed of collections of chiplets utilizing thousands of cores and high-bandwidth memory (HBM) to process algorithms in parallel. This architecture is essential for training LLMs and powering real-time sensor data in autonomous vehicles, but it introduces a “failure isolation” paradox: the same parallelism that enables low latency makes it incredibly difficult to pinpoint exactly which of the thousands of cores has failed when a bit goes wrong.
For the engineers tasked with ensuring these systems don’t crash under the weight of their own complexity, the stakes are financial as well as technical. High Bandwidth Memory, for instance, can account for up to 50% of the total package cost. A single defect in a memory stack can render an entire expensive module useless, making “known-fine stack” assurance a non-negotiable requirement for yield.
The Architectural Divide: CPUs vs. Accelerators
To understand why testing has changed, one must first understand the device under test. Traditional CPUs are heterogeneous—they are designed to handle a vast array of different tasks, which Daniel Simoncelli, business development manager for the P93k product line at Advantest, describes as testing “the kitchen sink.”
AI accelerators, by contrast, are more homogeneous. They typically replicate a single compute core tens or thousands of times on a single die. While this simplifies the design in some ways, it creates a massive data challenge for testers. The complexity now stems from the sheer volume of scan contents that must be piped into the device to verify billions of transistors.
Beyond the cores, these systems rely on a deep memory hierarchy and high-speed interfaces. Testing now encompasses bare dies, stacked HBM modules, and optical interfaces. As package sizes escalate—with some data center modules moving from 100 mm x 100 mm toward 150 mm x 150 mm—engineers are essentially testing these components as entire systems rather than individual chips.
The HBM Evolution and the Yield Struggle
High Bandwidth Memory is perhaps the most volatile variable in the AI hardware equation. Current HBM stacks typically consist of up to 12 DRAM dies communicating through a base logic die. As the industry transitions from HBM3 and HBM3E toward HBM4, the density is increasing. HBM4 is expected to pack 16 to 20 DRAM dies into a stack height of less than 775 microns.

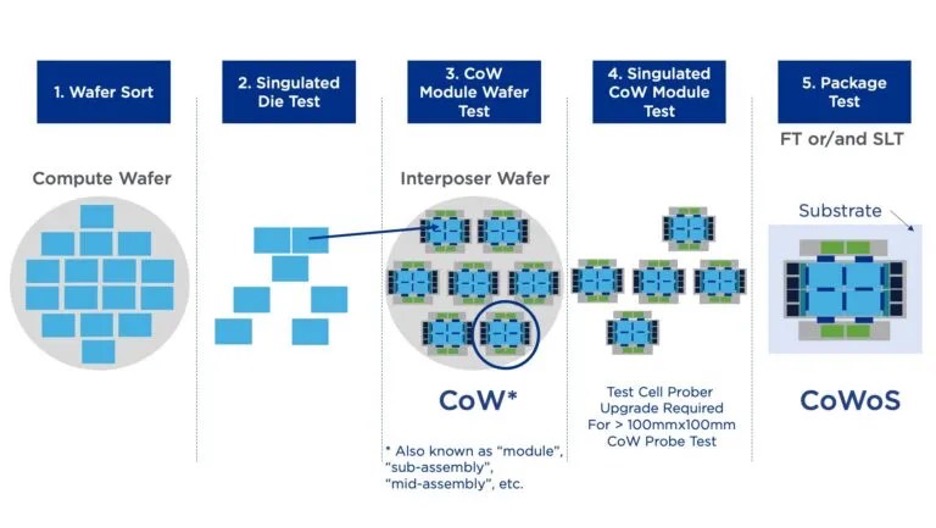

This density creates a “nightmare” for signal integrity. To achieve higher bandwidth, the number of through-silicon vias (TSVs) is increasing, which shrinks the microbump pitch to roughly 20 to 30 microns. This makes the packages fragile and expensive, leading many manufacturers to introduce new “singulated die tests” or partial assembly tests to catch failures before the final, most expensive packaging stage.
There is likewise a growing tension regarding who is responsible for yield. While DRAM vendors ship “known good die” to ASIC partners, testing for “stuck-at faults” on the interconnects after final assembly remains a challenge. Faisal Goriawalla, principal product manager at Synopsys, notes that even an 8G DRAM memory can take several seconds to test comprehensively on automated test equipment (ATE), forcing a trade-off between test time and coverage.
Managing the Heat: 2,000-Watt Challenges
Power integrity is the other primary frontier. AI accelerators are notoriously power-hungry, with some packages requiring between 300 watts and 2,000 watts. These high current densities create thermal hotspots that can degrade the performance of adjacent dies within the same package.
To combat this, engineers are employing “core gated test vectors” to manage heat during wafer sort and final tests. In some cases, custom air and liquid-cooled heads are required just to make production test insertions possible. Vineet Pancholi, senior director and manufacturing test technologist at Amkor Technology, emphasizes that the precise layout of chiplets for thermal isolation is now a primary architectural decision during the package design phase.
the nature of AI workloads creates “transient power swings.” JohnDavid Lancaster, an AI hardware research engineer at IBM Research, explains that starting and stopping inference workloads can stress the power integrity circuitry, potentially leading to operational failure if the chip is not characterized properly during the testing phase.
The Shift Toward Ecosystem Collaboration
Because these chips are no longer monolithic, no single company can solve the testing puzzle in isolation. The production complexity involves coordinating substrates, base dies, and third-party components across multiple suppliers and OSAT (Outsourced Semiconductor Assembly and Test) configurations.
This has led to a renewed reliance on industry standards. The IEEE 1838 standard, developed to enable communication between stacked dies, has become essential for 3D-IC designs. Similarly, the UCIe (Universal Chiplet Interconnect Express) standard is helping simplify production tests through features like redundancy repair and lane reversal.
The industry is also moving toward “in-system” testing. Because AI chips in data centers are subject to aging and “rowhammer” type sensitivities, scheduled downtimes are now used to perform latent sensitivity tests to preempt catastrophic failures in the field.
| Feature | Traditional CPU Testing | AI Accelerator Testing |
|---|---|---|
| Core Architecture | Heterogeneous (Diverse tasks) | Homogeneous (Massive parallelism) |
| Primary Challenge | Logic complexity/Variety | Failure isolation/Data volume |
| Power Profile | Moderate/Stable | Extreme (Up to 2,000W) / Transient swings |
| Memory Focus | Standard DRAM/Cache | Stacked HBM (Critical cost/fragility) |
| Test Scope | Die-level validation | System-level/In-field monitoring |
As the first wave of these advanced accelerators moves through assembly and test, the industry is entering a feedback loop. The data gathered from current failures will inform the next generation of Design-for-Test (DFT) methodologies. The goal is no longer just to make the “best chip,” but to optimize the entire chain—from the die to the rack to the data center—to ensure that performance is maximized while power consumption is kept in check.
The next major milestone for the industry will be the wide-scale implementation of HBM4 and the potential adoption of the IEEE P3405 proposed die-to-die interconnect test generators, which aim to further standardize how chiplets communicate during the validation process.
