When most people think about engine specifications, the conversation usually centers on the obvious: the number of cylinders, the displacement, or whether We see a V-shaped or inline configuration. But for those who dive deeper into the architecture of internal combustion, there is a less visible detail that often determines the ceiling of an engine’s performance and its long-term reliability: the design of the engine deck.

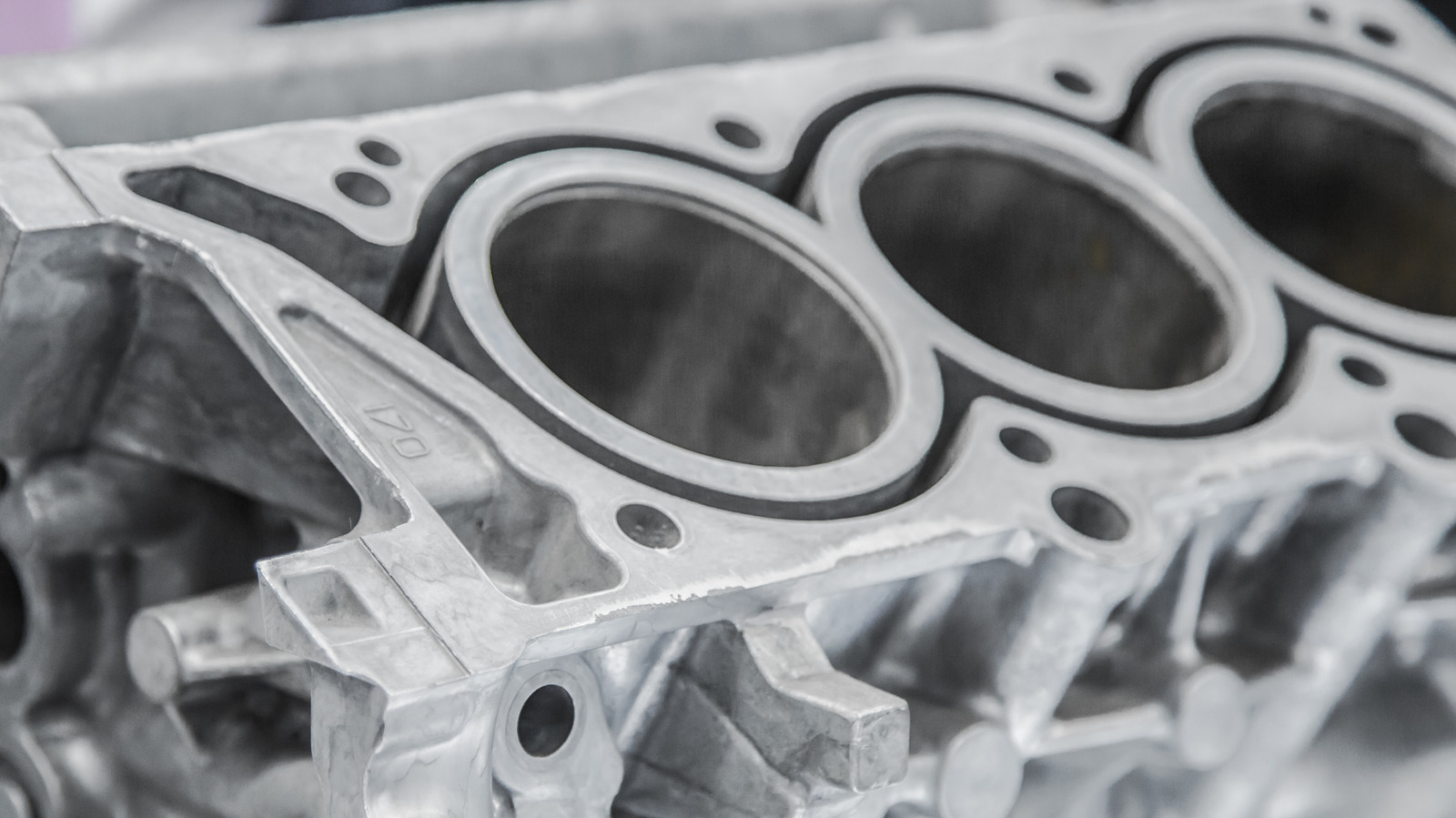

The engine deck is the top surface of the cylinder block where the head gasket rests and the cylinder head is bolted. While it may seem like a simple flat piece of metal, the way this area is engineered—specifically whether it is an open or closed design—creates a fundamental trade-off between thermal management and structural rigidity. Understanding the difference between closed deck vs. Open deck engine blocks is essential for anyone looking to understand why some engines are built for efficiency and others are engineered to withstand the brutal pressures of high-boost turbocharging.
From a systems perspective, the deck is essentially the “interface” of the engine. In an inline engine, there is a single deck; in a V-engine, there are two. The design choice here isn’t about how the engine produces power, but how it manages the byproduct of that power: heat and physical stress.
The Open Deck: Prioritizing Cooling and Cost
In an open-deck design, the cylinders are essentially “sleeves” cast into the block, but they are not fully supported at the top. Instead, there is an open channel of space surrounding the top of each cylinder. This gap allows engine coolant to flow freely around the entire circumference of the cylinder wall, providing superior heat dissipation.
For automotive manufacturers, the open-deck approach is highly attractive. It is generally less expensive to cast and machine than a closed-deck block. More importantly, for the average commuter vehicle, the increased cooling efficiency helps maintain lower operating temperatures, which can improve fuel economy and reduce wear under normal driving conditions.
However, this cooling advantage comes with a structural cost. Because the cylinders lack rigid support at the top, they are susceptible to a phenomenon known as “cylinder walk” or bore distortion. Under extreme combustion pressures—such as those found in high-horsepower tuning or heavy-duty towing—the cylinders can actually shift or vibrate slightly. Over time, this microscopic movement can compromise the seal of the head gasket, leading to the dreaded “blown head gasket” that plagues many high-mileage or modified open-deck engines.
The Closed Deck: Built for Maximum Pressure
A closed-deck engine block is the antithesis of the open design. Here, the open spaces around the cylinders are filled with additional metal “webbing” or support structures. This effectively locks the cylinders in place, providing immense structural rigidity right at the point of maximum combustion pressure.
This design is the gold standard for high-performance applications. Whether it is a factory-built supercar engine or a heavy-duty diesel truck, the closed deck ensures that the cylinder bores remain perfectly circular and stationary, even under massive boost from a turbocharger. By eliminating the flexibility found in open decks, these engines can handle significantly higher cylinder pressures without risking bore distortion or gasket failure.
The trade-off, however, is thermal efficiency. By filling those cavities with metal, the surface area exposed to coolant is reduced. This means closed-deck engines can run hotter and require more robust external cooling systems to prevent overheating. In some extreme racing circles, tuners go a step further by “filling” the remaining water jackets with a specialized epoxy or concrete—a process known as block filling—to maximize strength at the total expense of coolant flow.
The Semi-Closed Deck: The Engineering Compromise
Recognizing that most drivers need a balance of durability and cooling, many modern manufacturers utilize a semi-closed deck design. This is a hybrid approach that adds strategic support points to an otherwise open deck. Instead of filling the entire area, engineers add “bridges” of material at key stress points around the cylinder top.
A prominent example of this can be found in the evolution of the Subaru EJ20 engine. While early versions were open-deck, later high-performance iterations introduced semi-closed decks with additional support points. This design significantly reduced the likelihood of bore distortion while still allowing enough coolant flow to keep the engine from overheating during spirited driving.
To help visualize these differences, the following table breaks down the primary characteristics of each design:
| Feature | Open Deck | Semi-Closed Deck | Closed Deck |
|---|---|---|---|
| Cooling Efficiency | Excellent | Good | Moderate |
| Structural Rigidity | Low | Medium | High |
| Manufacturing Cost | Lower | Medium | Higher |
| Best Use Case | Daily Drivers | Sporty/Turbo Engines | Race/Heavy Duty |
Why the Deck Design Dictates Your Engine’s Limit
For the average car owner, the deck design is a non-issue; the engine is engineered to last the life of the vehicle under factory specifications. However, for the enthusiast or the professional mechanic, this is the “glass ceiling” of an engine’s potential. When a tuner asks, “How much boost can this block handle?” they are essentially asking about the deck design.
If you are working with an open-deck block, you are limited by the physical stability of the cylinders. Pushing too much pressure into the combustion chamber can warp the bores, leading to a loss of compression and eventual engine failure. Conversely, a closed-deck block allows for aggressive tuning, but shifts the failure point to the cooling system. If the radiator and water pump cannot keep up with the reduced internal cooling of a closed deck, the engine may suffer from thermal breakdown.
the choice between open and closed decks is a study in optimization. Engineers must decide whether the priority is the cost-effective, cool-running nature of the open deck or the uncompromising strength of the closed deck. As we move toward more efficient, smaller-displacement turbocharged engines, the semi-closed deck is becoming the dominant solution for the modern road car.
While the industry is shifting toward electrification, the refinement of internal combustion architecture continues in high-performance and heavy-industry sectors. Future updates in metallurgy and additive manufacturing may eventually allow for “variable” deck strengths, combining the cooling of an open deck with the rigidity of a closed one through 3D-printed lattices.
