For decades, physicists and medical engineers have operated under a straightforward assumption: if you want to know how an electron beam slows down in a material, you simply look at the material’s density. The logic was intuitive—more matter in the way means more collisions, which leads to a faster stop. However, new research into ultra-low-density “nanofoams” has revealed that this linear relationship is fundamentally flawed when dealing with materials that are mostly empty space.
This discovery regarding electron beam stopping power challenges the long-held belief that the energy loss of electrons in porous materials is proportional to their average density. By testing materials that consist largely of air and microscopic structural ribs, researchers found that the geometric arrangement of the matter matters as much as the amount of matter present. This nuance suggests that our current models for how radiation interacts with complex, low-density environments—including human tissue—may be incomplete.
The findings, led by scientists at the Pacific Northwest National Laboratory (PNNL), indicate that electrons do not simply “average out” their journey through a foam. Instead, the way they scatter and travel through the voids creates a stopping profile that differs significantly from what a bulk material of the same overall density would produce. For those of us who have spent years in software engineering, it feels like discovering a hidden logic gate in the physics of the natural world; the system isn’t just calculating a sum, it is reacting to a specific architecture.
The failure of the density assumption
In traditional radiation physics, the “stopping power” of a material is a measure of how quickly a charged particle, such as an electron, loses its kinetic energy as it travels. Until now, the standard practice for calculating this in porous materials was to use the “density scaling” method. This approach assumes that a foam with 10% of the density of a solid block will simply provide 10% of the stopping power.
The PNNL study overturned this assumption by utilizing nanofoams—materials engineered with an incredibly high surface-area-to-volume ratio. When these foams were subjected to electron beams, the researchers observed that the electrons were not stopping where the math predicted they should. The structural “skeleton” of the foam caused the electrons to deviate and scatter in ways that the density-based models failed to capture.

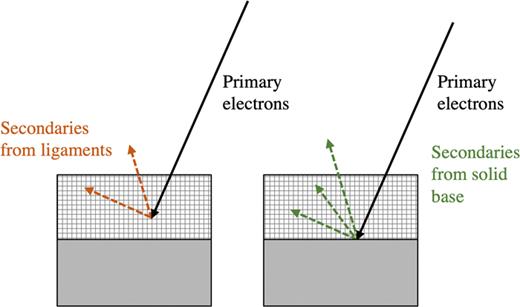

This discrepancy occurs because the “mean free path”—the average distance a particle travels before colliding with another particle—is fundamentally different in a structured foam than in a homogenous gas or solid. In a nanofoam, the electron may travel through a large void without any interaction, only to hit a dense structural rib that causes a sharp, high-angle deflection. This “chunkiness” of the matter changes the total path length the electron travels, effectively altering its stopping range.
Comparing traditional models vs. Nanofoam reality
To understand why this matters, it helps to visualize the difference between how we thought electrons moved through low-density matter and how they actually behave.
| Feature | Traditional Density Model | Nanofoam Observation |
|---|---|---|
| Energy Loss | Linear and proportional to average density | Non-linear; dependent on structural geometry |
| Particle Path | Assumed to be a smoothed average | Characterized by long voids and sharp collisions |
| Predictability | High for bulk solids and liquids | Low for highly porous or structured materials |
| Primary Factor | Mass per unit volume | Spatial distribution of matter |
Implications for cancer treatment and shielding
While the study focuses on engineered foams, the real-world implications extend directly into the clinic. Electron beam therapy is a cornerstone of cancer radiotherapy, used to treat superficial tumors and certain internal cancers because electrons can be controlled to stop at a very specific depth, sparing healthy tissue beneath the tumor.
Human anatomy is not a homogenous block of plastic; it is a complex arrangement of various densities, including air-filled lungs and porous bone marrow. If the electron beam stopping power is influenced by the structural geometry of the medium rather than just the average density, current dosing calculations for these specific tissues could be slightly off. Refining these models allows for greater precision in radiation oncology, ensuring that the maximum dose hits the malignancy while minimizing the “exit dose” to surrounding organs.
Beyond medicine, this research has significant potential for aerospace engineering. Protecting astronauts from cosmic radiation requires shielding that is both lightweight and effective. If scientists can engineer materials with specific “scattering geometries” that stop electrons more efficiently than their weight would suggest, they could create lighter, more effective radiation shields for long-term missions to Mars or the Moon.
What remains unknown
Despite the breakthrough, the researchers are still mapping the exact boundaries of this phenomenon. One of the primary constraints is determining the “critical porosity” threshold—the point at which a material stops behaving like a bulk solid and starts behaving like a structured foam in the eyes of an electron beam.
the study primarily looked at specific types of nanofoams. It remains to be seen if these results hold true across all porous materials, including biological tissues with varying degrees of cellular architecture. The next step involves creating a new mathematical framework that incorporates “structural factors” alongside density to predict stopping power more accurately.
As the scientific community integrates these findings, the focus will shift toward developing computational simulations that can model these complex interactions in real-time. This would allow medical physicists to input a patient’s specific tissue geometry—derived from CT scans—into a model that accounts for structural scattering, rather than relying on average density maps.
The research team is expected to continue refining these models through further collaborations with materials scientists and medical physicists, with updated simulation parameters likely to be proposed in upcoming peer-reviewed publications. This will provide the necessary data for the next generation of radiotherapy planning software.
