Researchers at the National University of Defense Technology retrieved fine-scale two-dimensional distribution maps of equatorial ionospheric scintillation using amplitude streak artifacts in L-band SAR data. The study, published in Space: Science & Technology, analyzed ALOS PALSAR observations from South America acquired on March 16, 2011.
Transforming SAR Artifacts Into Ionospheric Data
Spaceborne synthetic aperture radar relies heavily on L-band technology for Earth observation, but atmospheric disturbances frequently complicate its performance. In equatorial nighttime data, amplitude streak artifacts caused by equatorial plasma bubbles have traditionally been treated as interference. Instead of discarding these disruptions, a research team led by Tang Feixiang at the College of Electronic Science and Technology, National University of Defense Technology, developed an ionospheric scintillation spectrum analysis method to extract physical parameters from the streaks.
Grounded in phase-screen theory and the Kirchhoff diffraction model, the method establishes a theoretical connection between scintillation amplitude error spectral density functions and irregularity parameters. By applying azimuth normalized sub-band processing and digital filtering, researchers isolated one-way scintillation amplitude errors. Nonlinear least-squares fitting then enabled the team to retrieve turbulence intensity, scintillation indices, and spectral indices from the data.
ALOS PALSAR Observations Over South America
To test the approach, the study utilized two consecutive data sets captured by the Advanced Land Observing Satellite Phased Array Type L-band SAR over South America on March 16, 2011. Both data sets displayed distinct visible amplitude streaks across thousands of kilometers of orbital coverage.
| Data Set | Acquisition Window (UTC) | Image Count | Approximate Track Coverage |
|---|---|---|---|
| Data Set 1 | 01:48 to 01:54 | 46 images | 2,720 km |
| Data Set 2 | 03:29 to 03:35 | 44 images | 2,600 km |
The two collections were separated by approximately two hours according to the reporting, allowing researchers to evaluate regional variability across time windows within minutes of radar observation.
Validating Scintillation Against GNSS Maps

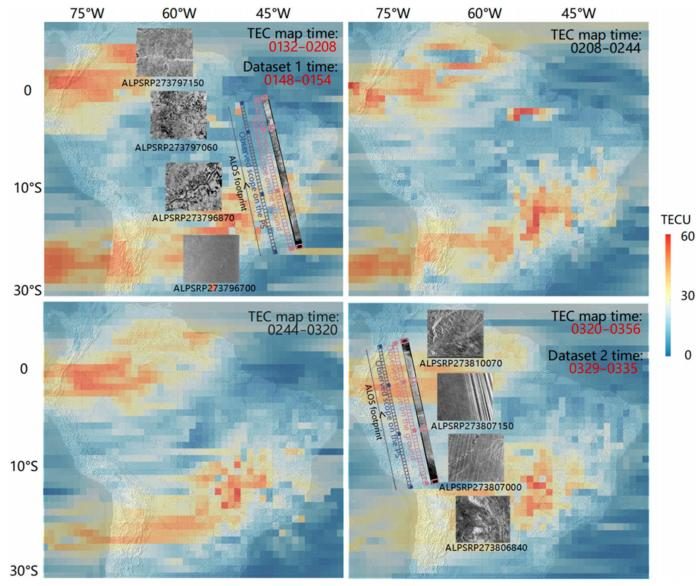

The team generated high-resolution two-dimensional and along-track sub-kilometer-scale distribution maps of the scintillation parameters. To test accuracy, researchers compared their radar-derived outputs with Global Navigation Satellite System total electron content maps.
The comparison revealed that SAR can provide high-resolution observations of ionospheric scintillation over thousands of kilometers within minutes. The retrieved scintillation index also showed strong consistency with direct measurements, while the spectral analysis demonstrated high sensitivity even during weak scintillation events.
Correlating Small-Scale Irregularities With Electron Density
The analysis links electron density directly to irregularity distribution. Regions featuring high total electron content contain elevated concentrations of Fresnel-scale small-scale irregularities. The data confirms that scintillation intensity correlates positively with electron content, while structural patterns display marked regional variability across the observed South American sectors.
