The MIT and EPFL team’s aerial-aquatic vehicle (FAAV) represents a breakthrough in bio-inspired robotics, combining flight and swimming capabilities in a single device. Weighing less than 300 grams (MIT News), the robot mimics diving birds like puffins, which can transition between air and water with remarkable efficiency. Testing in Lake Geneva demonstrated its ability to generate enough thrust to lift itself out of the water using only wing flaps.
Designing a Bird-Scale Aerial-Aquatic Vehicle
The FAAV’s design draws directly from the mechanics of diving birds. Researchers studied how puffins and petrels adapt their wing movements for both flight and aquatic propulsion, leading to a robot with flexible wings that can adjust to the vastly different densities of air and water. “Thinking of a wing that could operate in both [air and water] somewhat efficiently seems implausible,” said Raphael Zufferey, assistant professor of mechanical engineering at MIT, NPR reported. The team bypassed traditional solutions like folding wings or leg-based takeoff, instead relying on wing flexibility and precise flapping rhythms.
Key to the FAAV’s success is its neutrally buoyant design, allowing it to stay put in the water without sinking or floating. This balance, achieved through careful material selection and waterproofing, enables the robot to swim using its wings before transitioning to flight. You have to waterproof, individually, every single component, Zufferey explained NPR, highlighting the engineering challenges of operating in both mediums.
Testing the Limits of Aerial-Aquatic Mobility

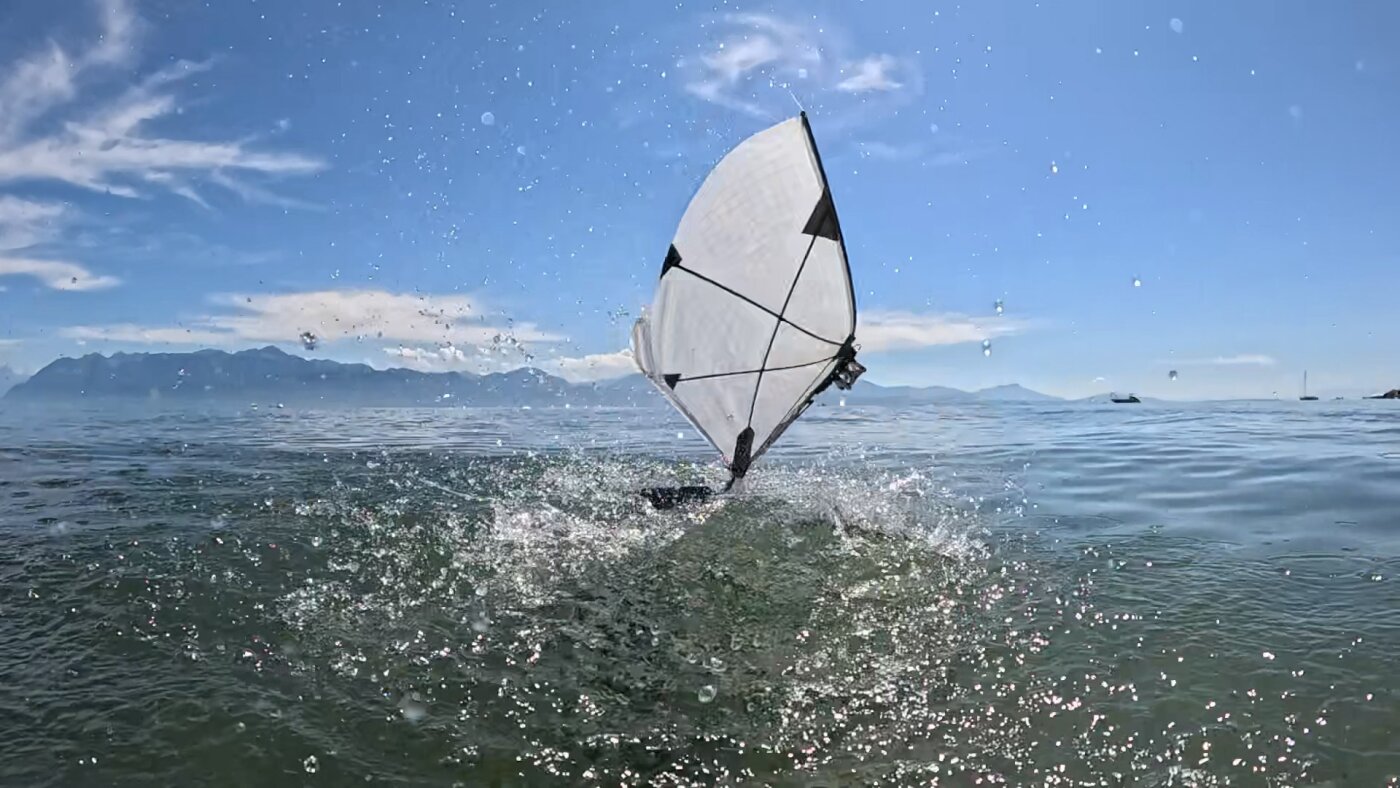

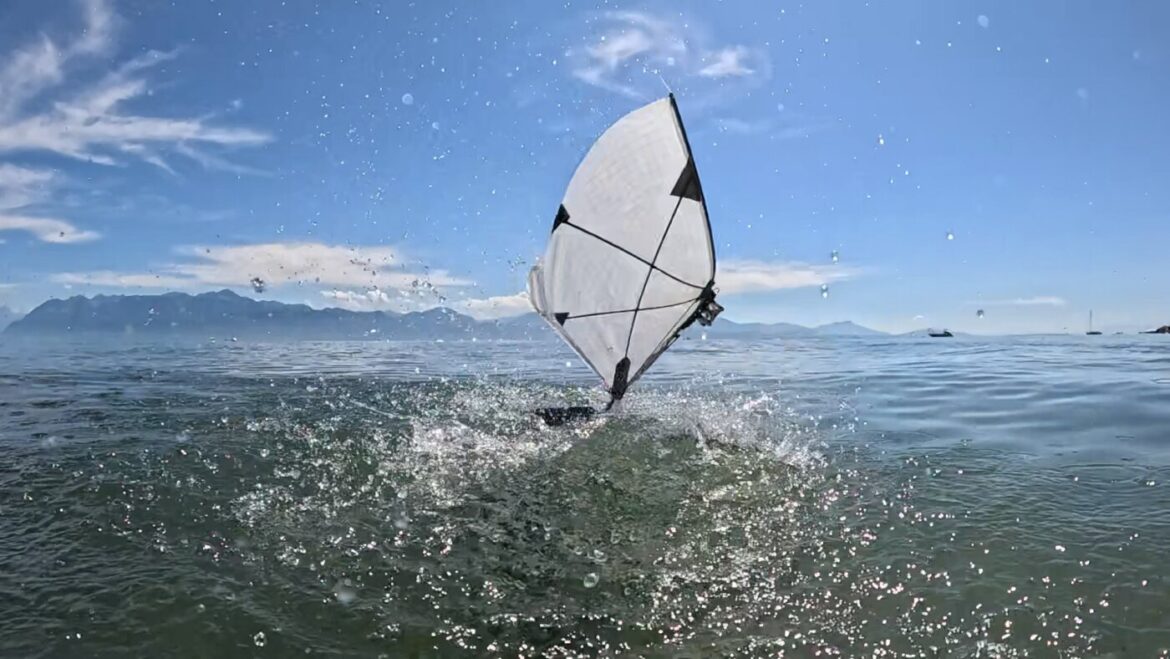

During field tests at Lake Geneva, the FAAV demonstrated its ability to break through the water’s surface and achieve flight within seconds. The robot’s wings flap at 10 times per second during takeoff, generating the necessary thrust to escape water resistance. You can really feel the forces, Zufferey said NPR. The team found that a 70-degree launch angle and intermediate wing stiffness were critical to avoiding failure during the water-to-air shift.
Lab experiments further refined the FAAV’s capabilities, identifying optimal wing sizes and flapping frequencies for different environments. The robot’s tail, which can adjust its angle, plays a crucial role in stabilizing flight and diving. The biology inspires the robotics, said Glenna Clifton, an animal movement biologist at the University of Portland NPR, adding that the device provides new insights into how diving birds adapt their mechanics for dual environments.
Implications for Oceanography and Robotics
The FAAV’s potential applications extend beyond academic curiosity. Researchers envision using it for environmental monitoring, such as sampling coral reefs or tracking marine life. Our dream vision is for oceanographers… to launch this robot from a boat… and it would dive into the water to take a measurement or collect a sample, Zufferey MIT News said. The robot’s low cost—around $300 in materials New Atlas—makes it accessible for replication.
The project also advances the field of bio-inspired robotics by bridging gaps between biological studies and engineering. By creating a physical model of diving bird mechanics, the team can test hypotheses that are difficult to study in live animals. The robotics are used to understand the biology, Clifton NPR noted, pointing to the mutual benefits for both disciplines.
Next Steps: Autonomy and Real-World Deployment
While the FAAV has proven its technical feasibility, researchers acknowledge hurdles remain. Current tests rely on manual launches, and the robot lacks full autonomy. The team is working on improving its navigation systems and adapting it for saltwater environments, which pose additional challenges due to corrosion and density differences. The system isn’t autonomous yet, New Atlas reported, noting that future iterations will focus on autonomous navigation, better performance in salt water, and longer range and endurance.
The project’s open-source approach further amplifies its impact. By releasing CAD files, the MIT team has enabled others to replicate and modify the design, fostering collaboration across the robotics community. At around US$300 in materials… the robo-bird is cheap enough to replicate, New Atlas highlighted, underscoring its potential for grassroots innovation.
